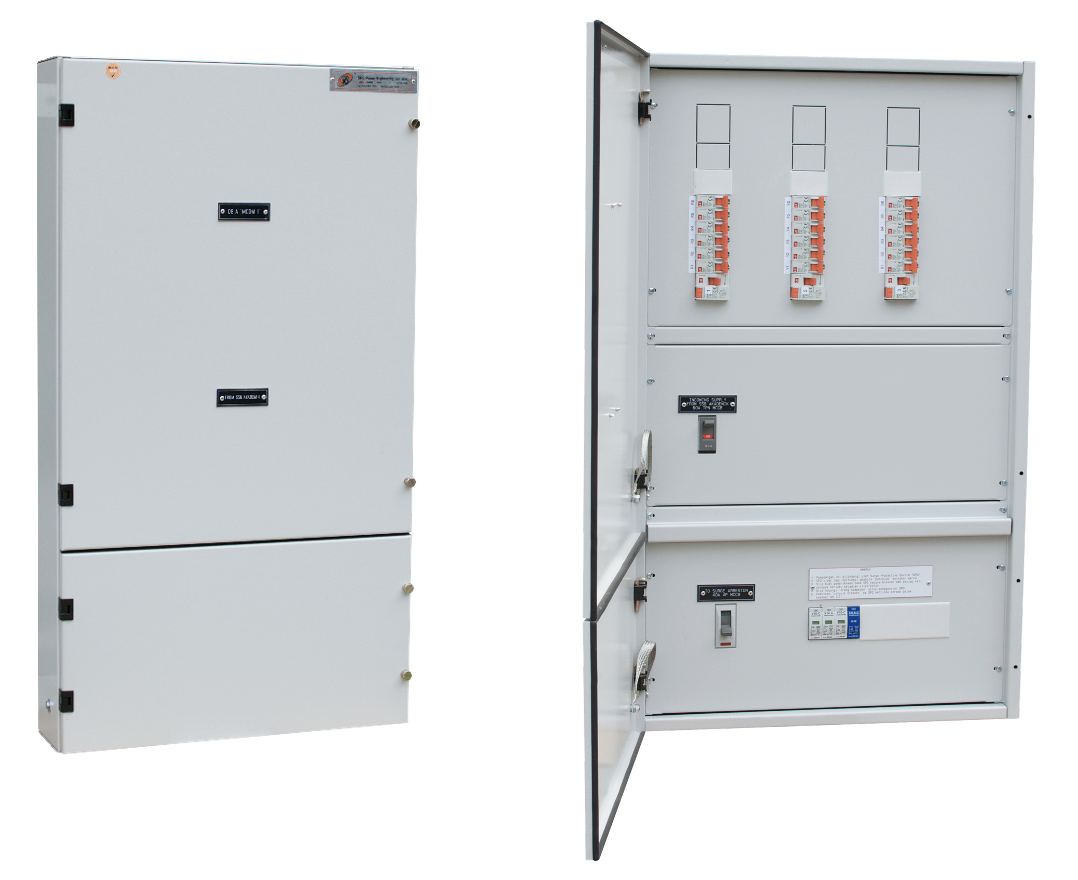

Distribution Board
SRS DB distributes power to final circuits such as lighting, power sockets and small equipment within a building. It is designed with earth leakage protection for enhanced safety, along with organized wiring for reliable operation and easy maintenance.
< LV Switchgear
Distribution Board
Product Description
SRS DB distributes power to final circuits such as lighting, power sockets and small equipment within a building. It is designed with earth leakage protection for enhanced safety, along with organized wiring for reliable operation and easy maintenance.
General Specification
- Standard: IEC 60439-1 & -2, IEC 60529
- Rated Voltage: 415V/ 240V
- Rated Current: Up to 250A
- Rated Frequency: 50Hz
- Fault Level: Up to 10kA
- Rated Impulse Voltage Withstand: 8kV
- Form of Segregation: Up to Form 4B
- Degree of Protection (Indoor): Up to IP43
- Cable Entry: Top and Bottom
- Enclosure Type: Wall Mounted
- Accessibility: Front
General Specification
- Standard: IEC 60439-1 & -2, IEC 60529
- Rated Voltage: 415V/ 240V
- Rated Current: Up to 250A
- Rated Frequency: 50Hz
- Fault Level: Up to 10kA
- Rated Impulse Voltage Withstand: 8kV
- Form of Segregation: Up to Form 2B
- Degree of Protection (Indoor): Up to IP 43
- Cable Entry: Top and Bottom
- Enclosure Type: Wall Mounted
- Accessibility: Front
