SRS SGear-12

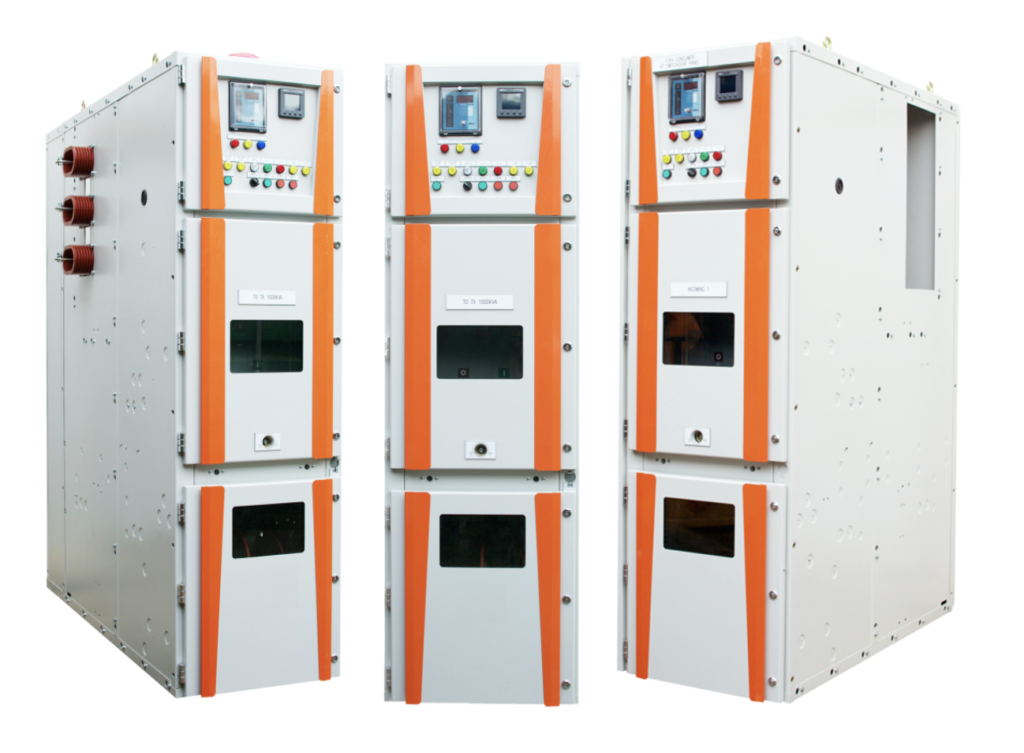

SRS SGear-12, is an 11kV metal enclosed, withdrawable switchgear system, designed and ASTA type tested in accordance with IEC 62271 standards. Engineered to be compact, modular and robust, it delivers safe, efficient and cost effective medium voltage power distribution for infrastructure, commercial, residential and utility systems.
< MV Switchgear
SRS SGear-12

Product Description
SRS SGear-12, is an 11kV metal enclosed, withdrawable switchgear system, designed and ASTA type tested in accordance with IEC 62271 standards. Engineered to be compact, modular and robust, it delivers safe, efficient and cost effective medium voltage power distribution for infrastructure, commercial, residential and utility systems.
General Specification
- Standards: IEC 62271
- Rated Voltage: 12kV
- Rated Current: 630A/ 1250A
- Rated Frequency: 50Hz
- Rated Short Circuit Breaking Current: 25kA
- Rated Short Time Withstand Current: 25kA, 3 Sec
- Rated Peak withstand Current: 62.5kA
- Insulation Type: Air-insulated
General Specification
- Standards: IEC 62271
- Rated Voltage: 12kV
- Rated Current: 630A/ 1250A
- Rated Frequency: 50Hz
- Rated Short Circuit Breaking Current: 25kA
- Rated Short Time Withstand Current: 25kA, 3 Sec
- Rated Peak withstand Current: 62.5kA
- Insulation Type: Air-insulated
