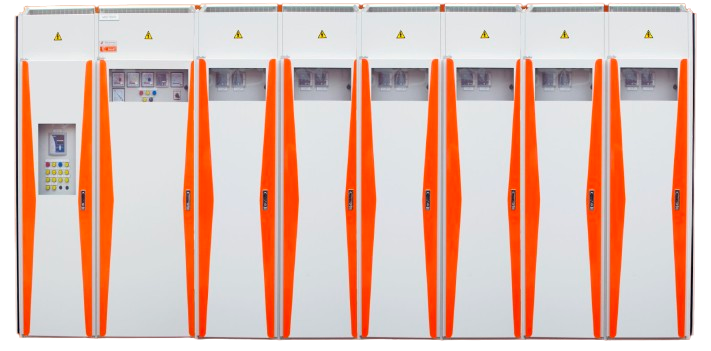

Main Switchboard
SRS Main Switchboard are ASTA Intertek Type Tested and arc fault containment tested, ensuring compliance with the highest international standards. Engineered for exceptional safety, reliability and power continuity, the MSB features a modular design that allows maximum flexibility and seamless future expansion. Ideal for critical uptime environments such as data centers, as well as demanding industrial and commercial applications, SRS MSB delivers uncompromising quality and total peace of mind.
< LV Switchgear
Main Switchboard
Product Description
SRS Main Switchboard are ASTA Intertek Type Tested and arc fault containment tested, ensuring compliance with the highest international standards. Engineered for exceptional safety, reliability and power continuity, the MSB features a modular design that allows maximum flexibility and seamless future expansion. Ideal for critical uptime environments such as data centers, as well as demanding industrial and commercial applications, SRS MSB delivers uncompromising quality and total peace of mind.
General Specification
- Standard: IEC 60439-1 & -2, IEC 61641
- Standard: IEC 60529, IEC 61000-6-2 & -4
- Rated Voltage: Up to 1000V
- Rated Current: Up to 6300A
- Rated Frequency: 50Hz
- Rated Short Time Withstand Current: Up to 100kA, 3 Sec
- Rated Impulse Voltage Withstand: 8kV
- Form of Segregation: Up to Form 4B
- Degree of Protection (Indoor): Up to IP43
- Degree of Protection (Outdoor): IP54
- Cable Entry: Top and Bottom
- Enclosure Type: Floor Standing
- Accessibility: Front/ Back
General Specification
- Standard: IEC 60439-1 & -2, IEC 61641
- Standard: IEC 60529, IEC 61000-6-2 & -4
- Rated Voltage: Up to 1000V
- Rated Current: Up to 6300A
- Rated Frequency: 50Hz
- Rated Short Time Withstand Current: Up to 100kA, 3 Sec
- Rated Impulse Voltage Withstand: 8kV
- Form of Segregation: Up to Form 4B
- Degree of Protection (Indoor): Up to IP 43
- Degree of Protection (Outdoor): IP 54
- Cable Entry: Top and Bottom
- Enclosure Type: Floor Standing
- Accessibility: Front/ Back
