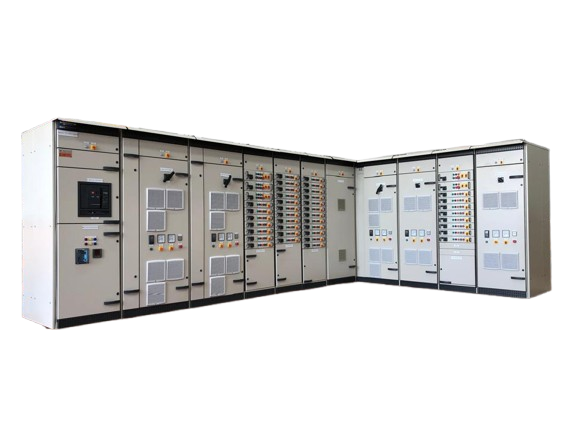

Motor Control Center (Fixed / Withdrawable)
SRS LV MCC is a modular, intelligent motor control solution designed to support various starting methods, including DOL, star-delta, auto-transformer, soft starter and VSD, customized for different industrial applications. It enables automated, centralized motor control for complex process flows, enhancing overall system efficiency and performance. Integrated with SCADA and BMS compatibility, it offers seamless operation, real-time monitoring, and simplified maintenance even in challenging and remote locations.
< LV Switchgear
Motor Control Center (Fixed / Withdrawable)

Product Description
SRS LV MCC is a modular, intelligent motor control solution designed to support various starting methods, including DOL, star-delta, auto-transformer, soft starter and VSD, customized for different industrial applications. It enables automated, centralized motor control for complex process flows, enhancing overall system efficiency and performance. Integrated with SCADA and BMS compatibility, it offers seamless operation, real-time monitoring, and simplified maintenance even in challenging and remote locations.
General Specification
- Standard: IEC 60439-1 & -2,IEC 60529
- Standard: IEC 61000-6-2 & -4
- Rated Voltage: Up to 1000V
- Rated Current: Up to 6300A
- Rated Frequency: 50Hz
- Rated Short Time Withstand Current: Up to 100kA, 3 Sec
- Rated Impulse Voltage Withstand: 8kV
- Form of Segregation: Up to Form 4B
- Degree of Protection (Indoor): Up to IP43
- Degree of Protection (Outdoor): IP54
- Cable Entry: Top and Bottom
- Control Units: Fixed/ Withdrawable
- Enclosure Type: Floor Standing
- Accessibility: Front/ Back
General Specification
- Standard: IEC 60439-1 & -2, IEC 60529
- Standard: IEC 61000-6-2 & -4
- Rated Voltage: Up to 1000V
- Rated Current: Up to 6300A
- Rated Frequency: 50Hz
- Rated Short Time Withstand Current: Up to 100kA, 3 Sec
- Rated Impulse Voltage Withstand: 8kV
- Form of Segregation: Up to Form 4B
- Degree of Protection (Indoor): Up to IP 43
- Degree of Protection (Outdoor): IP 54
- Cable Entry: Top and Bottom
- Control Units: Fixed/ Withdrawable
- Enclosure Type: Floor Standing
- Accessibility: Front/ Back
