UPS Input & Output Board
SRS UPS Input & Output Board is designed for critical data center applications, enabling seamless UPS integration. It manages reliable power distribution between utility, UPS, and IT loads, ensuring stable power to critical infrastructure. Built with modular, scalable architecture, it supports future expansion while maintaining maximum uptime. Color-coded external doors provide clear visual identification of utility sources, enhancing operational safety. The board features breaker and protection relay status monitoring with power measurement capabilities, plus seamless CEMS integration for enhanced control. Fully compliant with IEC standards and adaptable to Uptime Institute Tier requirements, it delivers safe, efficient power infrastructure for high availability environments.
< LV Switchgear

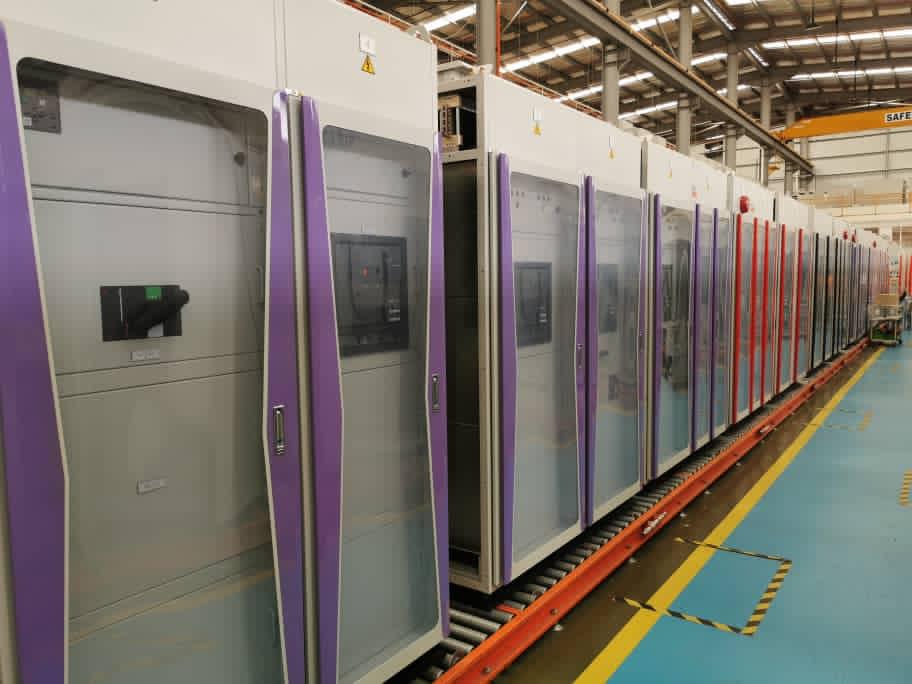

UPS Input & Output Board

Product Description
SRS UPS Input & Output Board is designed for critical data center applications, enabling seamless UPS integration. It manages reliable power distribution between utility, UPS, and IT loads, ensuring stable power to critical infrastructure. Built with modular, scalable architecture, it supports future expansion while maintaining maximum uptime. Color-coded external doors provide clear visual identification of utility sources, enhancing operational safety. The board features breaker and protection relay status monitoring with power measurement capabilities, plus seamless CEMS integration for enhanced control. Fully compliant with IEC standards and adaptable to Uptime Institute Tier requirements, it delivers safe, efficient power infrastructure for high availability environments.
General Specification
- Standard: IEC 60439-1 & -2, IEC 61641
- Standard: IEC 60529, IEC 61000-6-2 & -4
- Rated Voltage: Up to 440V
- Rated Current: Up to 6300A
- Rated Frequency: 50Hz
- Rated Short Time Withstand Current: Up to 100kA, 3 Sec
- Rated Impulse Voltage Withstand: 8kV
- Form of Segregation: Up to Form 4B
- Degree of Protection (Indoor): Up to IP43
- Cable Entry: Top and Bottom
- Enclosure Type: Floor Standing
- Accessibility: Front/ Back
General Specification
- Standard: IEC 60439-1 & -2, IEC 61641
- Standard: IEC 60529, IEC 61000-6-2 & -4
- Rated Voltage: Up to 440V
- Rated Current: Up to 6300A
- Rated Frequency: 50Hz
- Rated Short Time Withstand Current: Up to 100kA, 3 Sec
- Rated Impulse Voltage Withstand: 8kV
- Form of Segregation: Up to Form 4B
- Degree of Protection (Indoor): Up to IP 43
- Degree of Protection (Outdoor): IP 54
- Cable Entry: Top and Bottom
- Enclosure Type: Floor Standing
- Accessibility: Front/ Back
